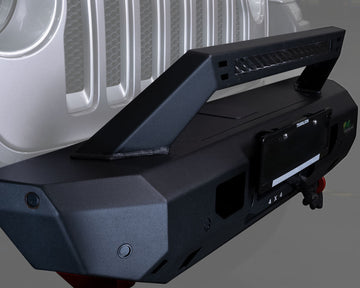

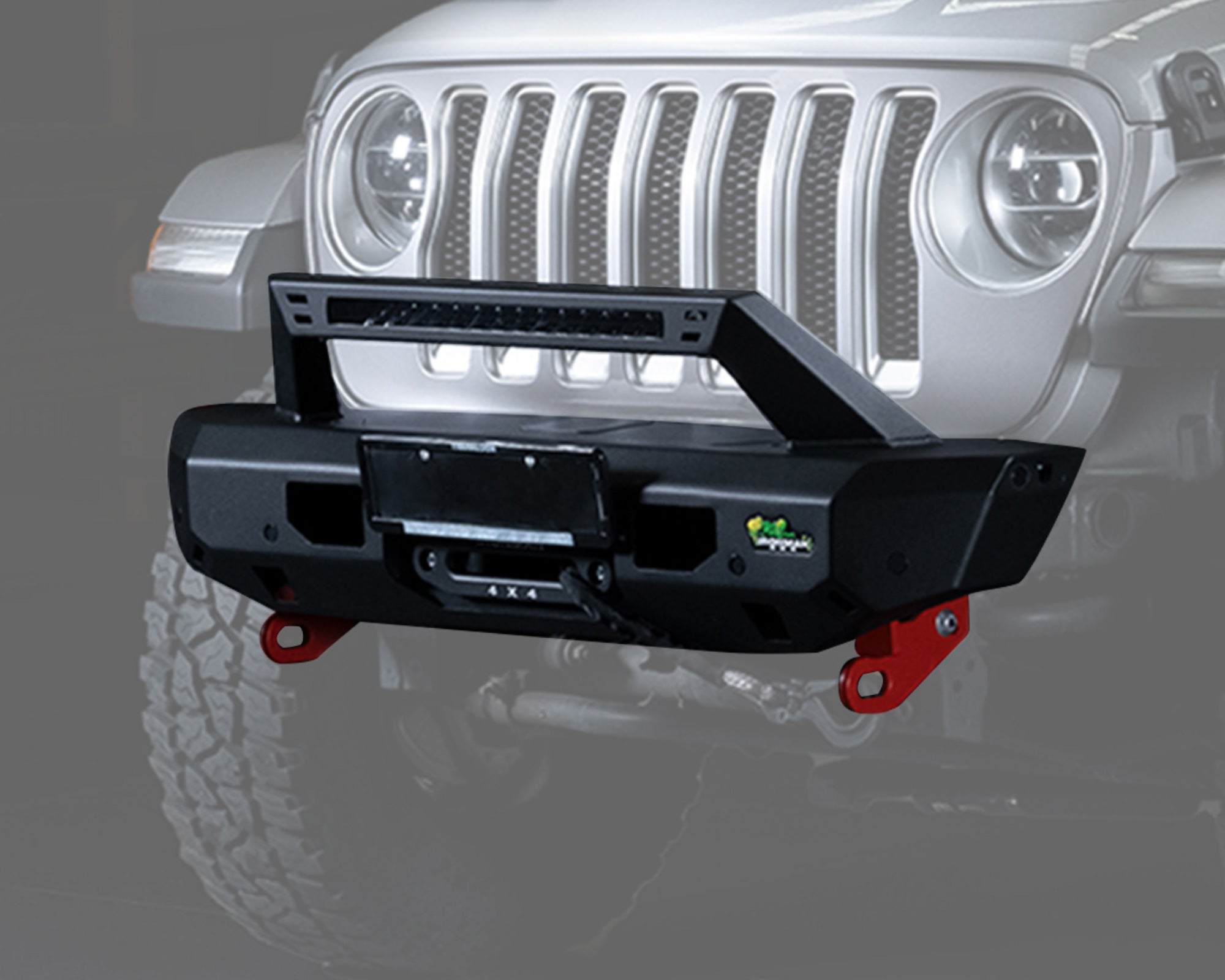

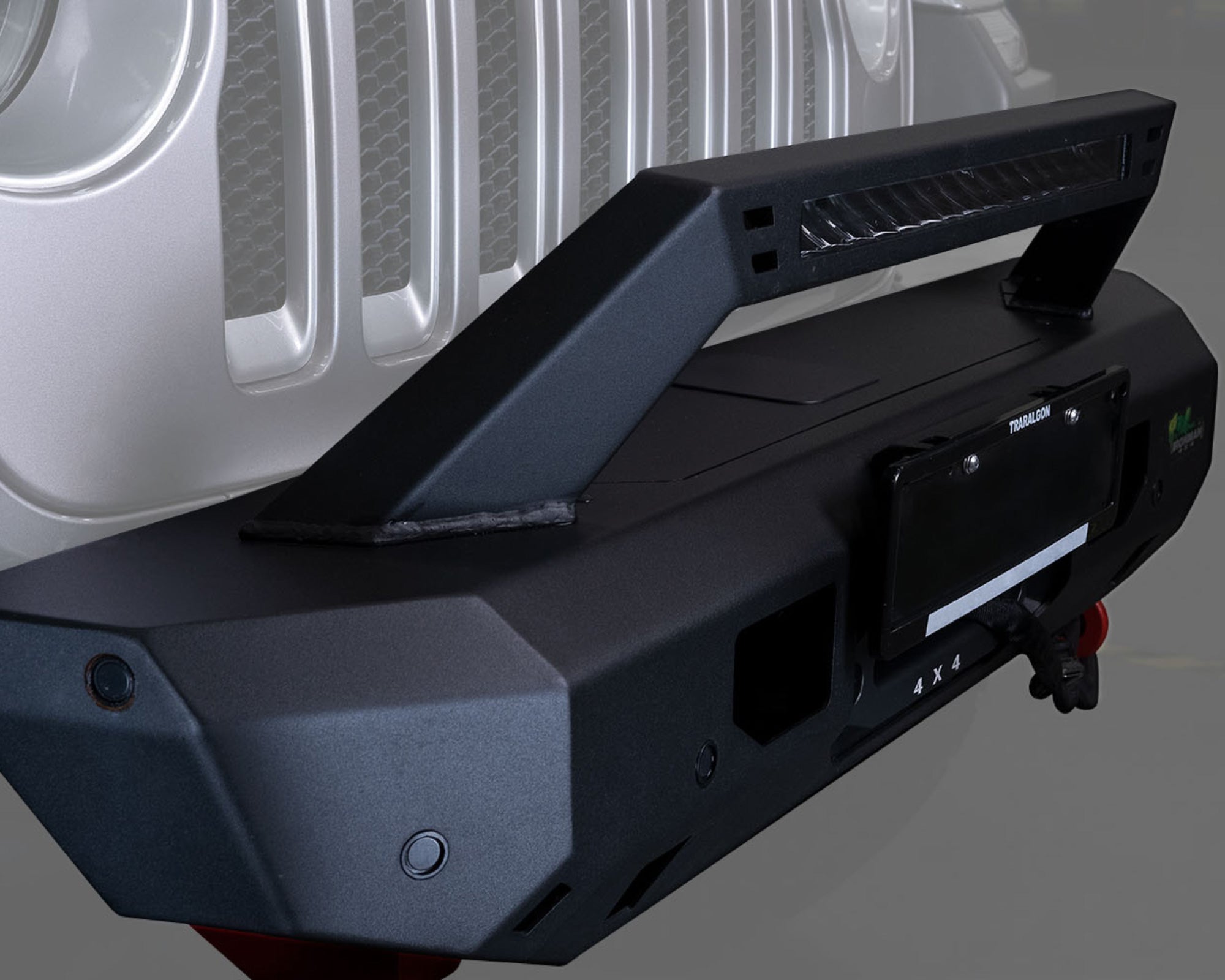

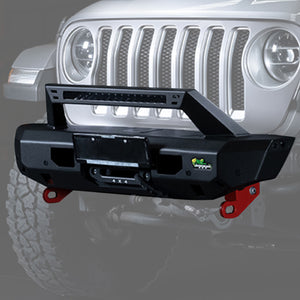

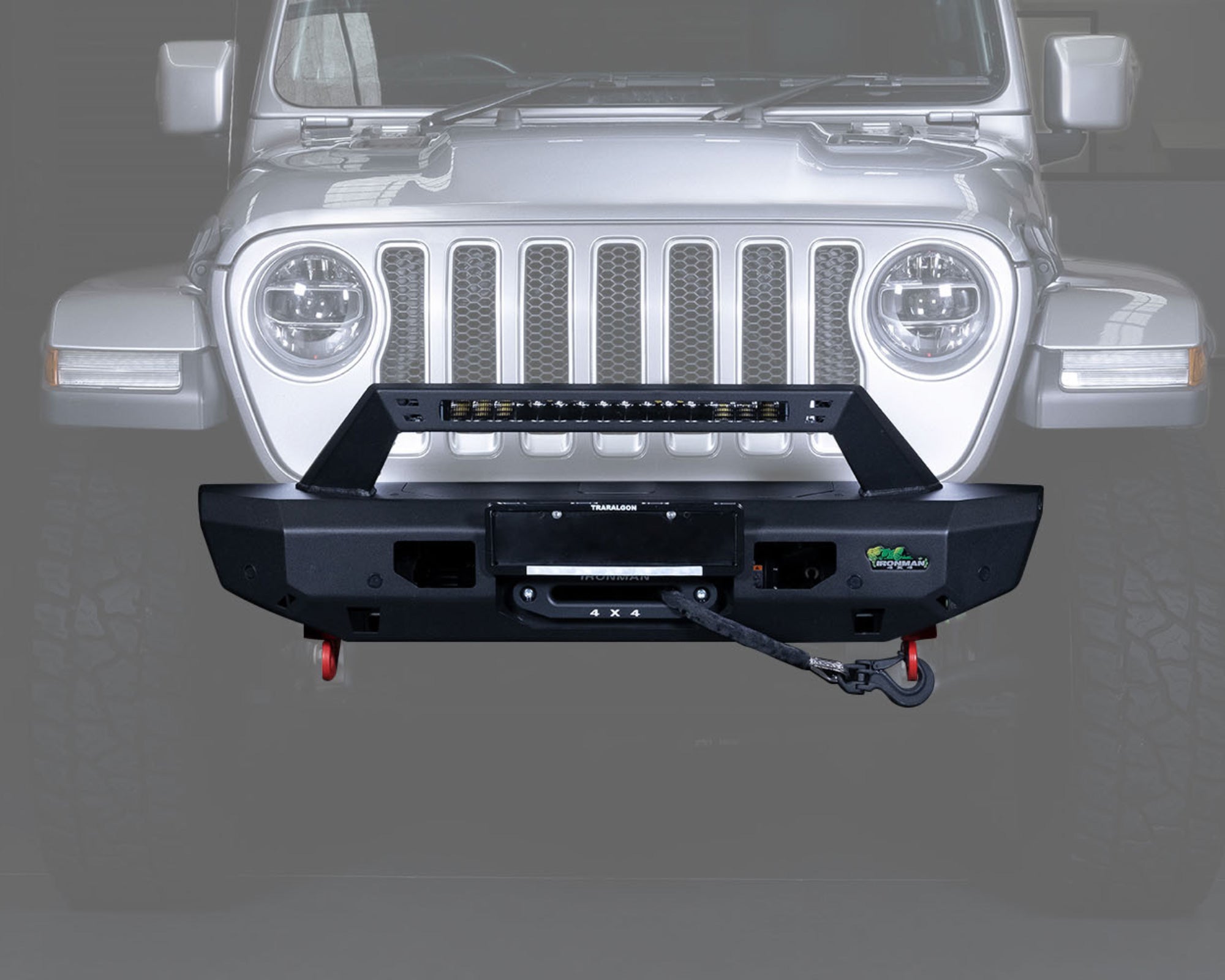

Raid Stubby Front Bumper Kit for Jeep Wrangler JL/JLU (2018+)
SKU: BBR077STJL
Crash Safety Tested
Winch Compatible
Integrated Lights
$299.00
$899.00
$299.00
Required Products
Warranty
3 Years
Freight Shipping
This item ships at a flat rate of $199 (certain exclusions apply)
There are required products for this item. .
Jeep Wrangler JL/JLU Front Bumper FAQ
Product Information
Overview
The world's first fully crash safety tested and SRS airbag compatible bumper to suit your Jeep Wrangler JL.
Leveraging our experience of designing and manufacturing vehicle armor for military, fleet, and recreational purposes, the mission was to create the safest, most feature-loaded 4x4 steel bumper on the market.
The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability.
The Ironman 4x4 Raid bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (3,500kg/7,700lbs) give you a concrete foundation for recovery or towing.
The Raid off-road steel bumper can come fully loaded with a 20", 105W single row OSRAM chip LED light-bar delivering projection of 8820 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.
Features:
- Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations

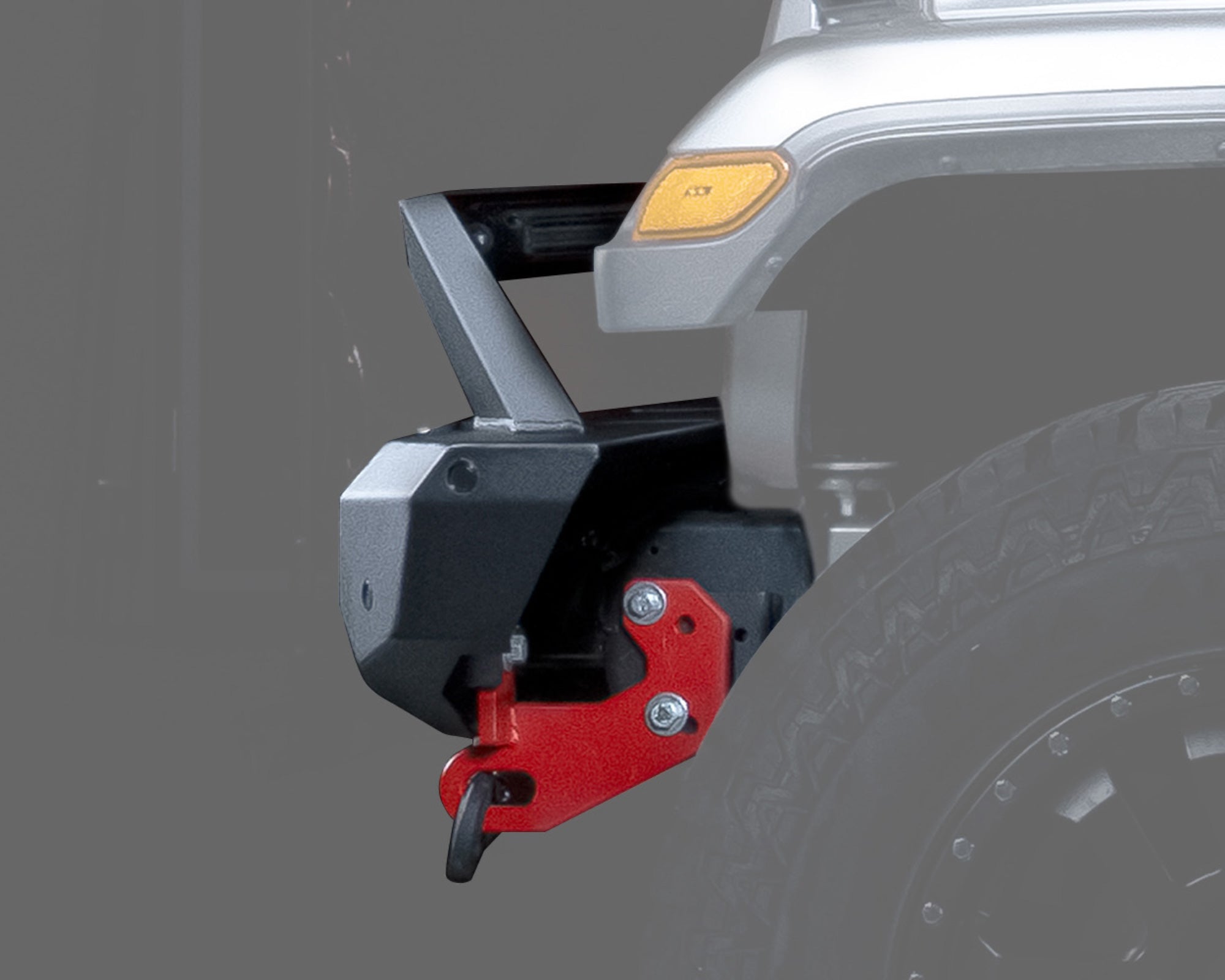

- Bolt-on, frame-mounted recovery points (3,500kg/7,700lbs) included with the bumper
- Integrated crumple zones transfer energy away from vehicle occupants
- ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
- Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
- Winch compatible with clutch handle access and line visibility
- Only compatible with 9500lbs winch.
- Standard 10” x 4.5” winch mount footprint
- Don’t want to run a winch yet? Raid comes with a winch “black out plate” to maintain a clean seamless look.
- Pickled, cold-rolled steel manufacturing for impurity free template during assembly
- Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
- 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
- Hi-lift Jack points built into the bumper so there’s no need for high lift hooks
- Integrated light bar
- Increased approach and departure angles provide maximum clearance for obstacles
- Compatible with factory parking sensors
Notes:
- Weight: 85 lbs
- Requires stock skid plate to be modified for proper front bumper fitment
- Only works with 9500 lbs winch
- Does NOT include wiring harness
Customers praised the fit, finish, and solid build quality. Installation video was helpful. However, compatibility issues arose with non-brand winches requiring extra drilling. Some hardware like crush washers needed replacement. The pressed logo is permanent and noticeable. Overall, customers said it looks great once installed.
- The bumper feels solid and looks pretty great
- I like the fit and finish of the bumper
- The installation video was great
Some of the reviews shown are from related products the merchant grouped with this one.
J
I actually ordered this for my 2010 Tundra. Knowing that it likely wouldn't fit, I purchased anyway because my truck got side swiped and it needed body work anyway. This bumper is awesome. It looks great, it's functional, and it's heavy duty. The body work I had done to fit the bumper was to make the body indentations in the box so it would fit. It turned out amazing. I also purchased and installed the Raid Bumper on the front as well. The truck looks pretty bad ass. I can't imagine there are a lot of trucks out there like it. I can post pictures if you'd like. I would also consider the Raid steps if they had the kick out in the rear. . . maybe something to consider. Overall, I'm very happy with the Rear AND Front Raid Bumpers from Ironman!
T
Excuse the dirty truck; it’s a work truck. As for the build, it’s easy to assemble. You can fit Diode Dynamics lights with a bit of modification to their brackets. If you’re running 35x12. 50 tires, you might need to trim the lower panel guards. I left mine off for now until I trim them for the tires. When adjusting the bumper forward and backward, watch the light bar bracket—if not adjusted correctly, it will hit the winch tray and prevent the bumper from sliding back properly. The YouTube video is really helpful for the installation process. Now I just need to get the back bumper, unless they decide to sponsor the build for it, considering there are no reviews or other pictures besides theirs, lol.
S
Love this bumper. This was the look I was going for. I couldn’t be happier. Easy to install. I love the fact you can install a winch in it and it doesn’t show. Yes there is a 12000 lbs HF Badlands winch installed in there. I just moved the controls to the engine compartment. I would definitely recommend this to anyone looking for a quality bumper.
M
Looks great and the install was relatively easy. I recommend this upgrade!
D
Bought this bumper to replace a stock one. Install was pretty easy, even by myself. I wish it came with wire extensions for the parking sensors and tow hookup because it sticks out further than stock and the wires are TIGHT!
J
Bumper fit was spot on and the install videos were a huge help. The raid bumper is exactly what I was looking for.
d
Great looking bumper, perfect fit, really brings out the beauty of this truck
A
Amazing product with quality. . .
Very well engineered and looks amazing!
Unfortunately i dont have another 4runner so i can buy another bumper
M
Continued. Please See previous review where pictures did not download
M
Nice Bumper Templates worthless so are Eyebrows if you dont use them. The Blind spot radar units work with this bumper so dont throw that feature away just to use the pointless metal Eyebrows. Cut straight across dont use templates. See pictures and Video. Any questions I have simple measure instructions to fit body back on and retain the Blind spot radar
J
Great looking bumper. I’ve gotten a lot of compliments on it. Solid build and easy to install. The brush guard was mine before but I able to put it back after I installed the bumper.
J
Absolutely love the way this bumper looks! It was also very easy to install.
T
Love the look at the Raid front bumper on my 2023 Tacoma. Install fairly easy after watching the video. Getting a winch in there with no real instructions not big problem either. All holes matched up fin. build seems very solid.
Going along great with my other Iron Man4x4 purchases; pet lounger, water tank, foam cell suspension. I placed two years ago, 270 Delta wing, and the rollout table. All our good quality haven’t got to use the them much since most of this has been placed in October. Just waiting on my rear Raid bumper now.
Ironman color scheme goes great with my Metallic Electric Lime Tacoma.
W
I like the bumper a lot other than the slots for the tag lights I just ended up making block off plates and the instructions were not the best which made install a bit finicky.
D
Looks amazing. Install was straight forward. Check your wiring situation as a switch inside is needed to complete the install. Great value.
D
Awesome bumper highly recommend!
B
Relatively easy to install on my 2021 Chevy Silverado Trail Boss. Didn’t come with the template to cut the front fender pieces so had to measure and pray. I also had to modify the top plate a bit to allow for easier access to the winch. Using a 12k Ironman winch, could hardly get to the to the clutch and very difficult to hand roll with the two small square holes provided. May want to consider changing the design a bit for usability. Shouldn’t be a big deal for a road princess but definitely an issue should you actually need to use the winch.
C
Love it
B
Highly recommend. Very simple to install. Hardest part is cutting your old bumper. GREAT value for the quality of the product.
T
Finally got around to installing the Raid Rear Bumper. Installation was fairly easy after watching the video they provided. Most time consuming part was getting the plastic Toyota trim to fit properly. A lot of trial and error was involved but it looks great after that was done. Good quality bumper that is a bolt on fit with no welding. I highly recommend this bumper for your 4Runner for a clean and strong bumper.
Overall rating: 4.6434784 / 5 from 115 reviews.
AI Generated Review Summary
The Raid Stubby Front Bumper Kit for Jeep Wrangler JL/JLU (2018+) offers robust protection and enhanced functionality. It features a two-part design with a winch cradle directly mounted to the chassis, providing a strong recovery platform. The bumper includes frame-mounted recovery points, integrated crumple zones, and ADR 69, 73 approved safety standards. It also comes with a high-quality LED light bar for improved visibility. However, some customers found the hardware challenging to install and the bolts insufficient.
Summary topics
- Product Quality (12%): Customers expressed satisfaction with the great quality of the product, which was mentioned multiple times in the reviews.
- Product Fit (10%): Customers raved about the fit of the product, mentioning that it fit perfectly in the grill.
- Winch Mount (17%): Many customers pointed out that the winch mount is a bit sharp and may hit a sharp bracket.
- Light Quality (14%): It was noted by customers that the lights are bright and well-made, making them a great addition to their vehicles.
- Hardware Installation (8%): Customers expressed differing viewpoints regarding the hardware, with some finding it challenging to follow the instructions.
Review topics: ["shipping","looks","instructions","issues","fit","quality","packaging","price","customer service","finish","build","bumper","assembly","design","protection","install","threads","winch","lights","video","bolts","hardware","grill","rear","bar","fitment","value","deal","addition","nuts"].
Review highlights
- "Bumper looks great, winch is functional." —
- "The powder coating looks great and the install was pretty straightforward." —
- "Great bumper, great Aussie quality for Overlanding." —
Reviews
Amazing product. . . great quality! Easy installatio
"Amazing product with quality. . . Very well engineered and looks amazing! Unfortunately i dont have another 4runner so i can buy another bumper"
Solid Bumper with great looks
"Love the look at the Raid front bumper on my 2023 Tacoma. Install fairly easy after watching the video. Getting a winch in there with no real instructions not big problem either. All holes matched up fin. build seems very solid. Going along great with my other Iron Man4x4 purchases; pet lounger, water tank, foam cell suspension. I placed two years ago, 270 Delta wing, and the rollout table. All our good quality haven’t got to use the them much since most of this has been placed in October. Just waiting on my rear Raid bumper now. Ironman color scheme goes great with my Metallic Electric Lime Tacoma."
Solid bumper looks awesome
"Great looking bumper. I’ve gotten a lot of compliments on it. Solid build and easy to install. The brush guard was mine before but I able to put it back after I installed the bumper."
Love this bumper. This was
"Love this bumper. This was the look I was going for. I couldn’t be happier. Easy to install. I love the fact you can install a winch in it and it doesn’t show. Yes there is a 12000 lbs HF Badlands winch installed in there. I just moved the controls to the engine compartment. I would definitely recommend this to anyone looking for a quality bumper."
Excuse the dirty truck; it’s
"Excuse the dirty truck; it’s a work truck. As for the build, it’s easy to assemble. You can fit Diode Dynamics lights with a bit of modification to their brackets. If you’re running 35x12. 50 tires, you might need to trim the lower panel guards. I left mine off for now until I trim them for the tires. When adjusting the bumper forward and backward, watch the light bar bracket—if not adjusted correctly, it will hit the winch tray and prevent the bumper from sliding back properly. The YouTube video is really helpful for the installation process. Now I just need to get the back bumper, unless they decide to sponsor the build for it, considering there are no reviews or other pictures besides theirs, lol."
Could make installation much easier
"Could make installation much easier if winch cover came in two pieces. . . It would be lighter and provide easier access to cover bolts!"
I really like the bumper.
"I really like the bumper. Especially the low profile with my EVO 10S Warn winch. It was a fairly easy install using the video. I just had a slight problem with one of the bolt holes on the winch plate lining up with the frame hole. I had to enlarge the hole a little bit with a drill. Other than that it was a straight forward install. I really like the look of the bumper and the 40 watt flood fog lights are very bright."
Relatively easy to install on
"Relatively easy to install on my 2021 Chevy Silverado Trail Boss. Didn’t come with the template to cut the front fender pieces so had to measure and pray. I also had to modify the top plate a bit to allow for easier access to the winch. Using a 12k Ironman winch, could hardly get to the to the clutch and very difficult to hand roll with the two small square holes provided. May want to consider changing the design a bit for usability. Shouldn’t be a big deal for a road princess but definitely an issue should you actually need to use the winch."
Raid Tundra 1794 front bumper
"I installed the Raid front bumper on a2018 1794 Tundra. The fitment and welds are great. The adjustability of the bumper allows for proper body lines. I used my stock sensor bracket to lock in the sensors. Setting the center light and bracket requires the light to be angled to set in place. Tap into place is required. The lights are bright and I used a light pod to wire everything up."
Q&A
- Does this work with the trail cam?
- Yes this will work
- Can you use the factory fog lights in the cutouts? If not can you suggest what fogs would fit please?
- Those cutouts are for accessing the winch, not for lighting purposes.
