Will this bumper fit my Ram 1500 (2019-2024)?

The Raid Front Bumper Kit suits the 2019-2024 Ram 1500 , with one hard exclusion: it does NOT fit Rebel models. Beyond that, the only thing to plan for is trimming rather than compatibility. The tubular Raid design brings improved vehicle protection, increased approach angle and additional ground clearance with it. [card] Does NOT fit Rebel models This one is absolute. If your Ram 1500 is a Rebel, this is not the bumper for it. [/card] [card] Minimal trimming to the front fender plastics The bumper requires a minimal amount of trimming to the front fender plastics during fitting. Budget a little time for it in the install and mark your cut line before you make it. [/card] [card] Oversized wheels and tires Additional cutting of the gravel guards may be required when fitting large, oversized wheels and tires, which is worth knowing if the truck is already on a bigger setup. [/card] [info] Driver aids: the Raid bumper is compatible with factory parking sensors. [/info]

What winch fits this bumper?

Any winch on the standard 10" x 4.5" mounting footprint fits the Raid Ram 1500 bumper, and the winch cradle is part of the two-part bumper rather than an add-on. Roller fairleads are the one exception. They do not work with this bumper. We don't publish a maximum capacity figure for this bumper, so the remaining checks are all about physical fit. [card] What to measure on the winch Bolt pattern against that footprint, drum length, the size of the motor housing, and where the control box mounts. A winch can share the bolt pattern and still be too long across the drum or too tall at the motor to clear the cradle and the bumper opening. [/card] [card] Two-stage attachment The winch cradle connects directly to the chassis, so the pull loads the frame. Alternative one-piece bumpers pull from the bumper shell, which is what causes twisting and potential deformation to the steel and the vehicle. [/card] [card] Usability, not just fit The bumper is built for clutch handle access and line visibility, so check that your clutch handle lands where you can reach it and that the fairlead sits square to the drum. Roller fairleads do not work with this bumper. [/card] The rated recovery points are frame-mounted too, so recovery loads and winch loads both go into the chassis rather than the bumper shell.

What lights come with this bumper?

The Raid Ram 1500 bumper can come fully loaded with a 32" 300W dual row OSRAM chip LED light-bar throwing 25000 raw lumens down the road, plus four customizable OSRAM chip LED cube lights with up to 4800 lumens. [card] Clear or amber, spot or flood The cube lights are configurable: pick clear or amber lenses and spot or flood beam patterns to suit the conditions you drive in. [/card] [card] Hooded reflectors on the light-bar The hooded reflectors direct the beam more effectively and reduce the glare commonly found in light bars. [/card] [card] Flat polycarbonate lenses Every light uses a flat, UV-stable polycarbonate lens designed to reduce rain, snow and ice build-up on the face of the lamp. [/card] [info] Powering them: a wiring harness is not included, so the bumper accommodates a wide variety of setups. We recommend a third-party harness best suited to your build, and our lights connect easily using standard universal Deutsch connectors. [/info]

Can I recover or tow off this bumper?

Yes. The Raid Ram 1500 bumper comes with bolt-on, frame-mounted rated recovery points at 5,000kg/11,000lbs , which give you a concrete foundation for recovery or towing. [card] Use 5,000kg/11,000lbs as your ceiling That is the rating on the recovery points supplied with this bumper, so size your straps and shackles against it. [/card] [card] Frame-mounted, not shell-mounted The points bolt to the frame rather than to the bumper shell, so a recovery load goes into the chassis. Alternative one-piece bumpers pull from the shell instead, which is what causes twisting and potential deformation to the steel and the vehicle. [/card] The points are bolt-on and included with the bumper, not a separate purchase.

Is this something I can install at home?

Yes! The Raid Ram 1500 bumper is a two-part bolt-on , with some trimming as part of the job. The bumper requires a minimal amount of trimming to the front fender plastics, and additional cutting of the gravel guards may be required if the truck is on large, oversized wheels and tires. Have a cutting tool and a file on hand for the plastics, and mark your line before you cut it. [card] The order of work Winch cradle to the chassis first, then the bumper over it, so you are not moving the whole 143 lbs in one piece. We recommend a second person when the bumper shell goes on, given the sheer weight and size of it. [/card] [info] Before you start: a wiring harness is not included, which keeps the bumper open to a wide variety of setups. Pick a third-party harness matched to your winch and lighting, and our LED lights connect easily using standard universal Deutsch connectors. Roller fairleads do NOT work with this bumper, so sort your fairlead out ahead of time. [/info] Prefer to have a certified dealer handle it? Find your nearest one through our store locator .

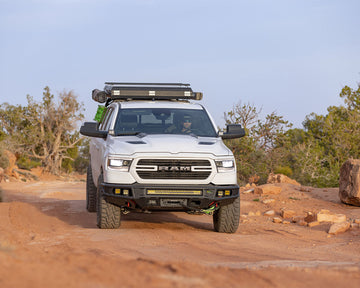

Raid Front Bumper Kit for Ram 1500 (2019-2024)

Raid Front Bumper Kit for Ram 1500 (2019-2024)

SKU: BBR085EK

Crash Safety Tested

Winch Compatible

Integrated Lights

Select Light Bar

Select Cube Lights 1st Pair

Select Cube Lights 2nd Pair

$1,399.00

Does NOT fit Eco diesel or Rebel models.
Additional cutting of gravel guards may be required
when fitting large, oversized wheels and tires.

Warranty

3 Years

Freight Shipping

This item ships at a flat rate of $199 (certain exclusions apply)

Ram 1500 Front Bumper FAQ

Product Information

The world's first fully crash safety tested and SRS airbag compatible tubular style bumper to suit 2019-2024 Ram 1500.

Leveraging our experience of designing and manufacturing vehicle armor for military, fleet, and recreational purposes, the mission was to create the safest, most feature-loaded 4x4 steel bumper on the market.

The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability.

The Ironman 4x4 Raid bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (5,000kg/11,000lbs) give you a concrete foundation for recovery or towing.

The Raid off-road steel bumper can come fully loaded with a 32", 300W dual row OSRAM chip LED light-bar delivering projection of 25000 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

In addition to the powerful light-bar are four customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.

Bumper requires minimal amount of trimming to front fender plastics.

Features:

Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
Bolt-on, frame-mounted recovery points (5,000kg/11,000lbs) included with the bumper
Integrated crumple zones transfer energy away from vehicle occupants
ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
Winch compatible with clutch handle access and line visibility
Standard 10” x 4.5” winch mount footprint
Pickled, cold-rolled steel manufacturing for impurity free template during assembly
Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
Increased approach and departure angles provide maximum clearance for obstacles
Compatible with factory parking sensors

Notes:

Weight: 143 lbs
Does NOT fit Rebel models
Additional cutting of gravel guards may be required when fitting large, oversized wheels and tires
Does NOT work with roller fairleads
Does NOT include wiring harness

Make	Model	Year	Installation Guide

Overall rating: 4.6434784 / 5 from 115 reviews.

AI Generated Review Summary

The Raid Front Bumper Kit for Ram 1500 (2019-2024) offers a robust two-part design with a winch cradle directly mounted to the chassis for optimal recovery. Customers praise its quality, fit, and lighting, while installation is generally straightforward with helpful videos. Bolts and instructions received mixed reviews.

Summary topics

Aesthetic Appeal (38%): A substantial number of customers appreciated the look of the product, describing it as great, amazing, and solid.
Product Quality (12%): It was highlighted by customers that the quality of the product is great and well-made.
Product Fit (10%): Customers raved about the fit of the product, mentioning that it fit perfectly in the grill.
Installation Ease (22%): Many customers pointed out that the installation of the product was pretty straightforward with aid of video's and Ironmans Staff.
Lighting Performance (14%): Customers expressed satisfaction with the lights, as they were described as bright, well-made, and excellent.

Review topics: ["shipping","looks","instructions","issues","quality","fit","packaging","price","customer service","finish","build","bumper","assembly","design","threads","install","protection","winch","lights","video","bolts","hardware","grill","rear","bar","fitment","nuts","value","addition","deal"].

Review highlights

"Bumper looks great, winch is functional." — William W.
"The powder coating looks great and the install was pretty straightforward." — Kyle H.
"Great bumper, great Aussie quality for Overlanding." — Christian R.

Reviews

Bumper fit was spot on

"Bumper fit was spot on and the install videos were a huge help. The raid bumper is exactly what I was looking for."

— Jason t. (5/5)

Amazing product. . . great quality! Easy installatio

"Amazing product with quality. . . Very well engineered and looks amazing! Unfortunately i dont have another 4runner so i can buy another bumper"

— Andres (5/5)

Solid Bumper with great looks

"Love the look at the Raid front bumper on my 2023 Tacoma. Install fairly easy after watching the video. Getting a winch in there with no real instructions not big problem either. All holes matched up fin. build seems very solid. Going along great with my other Iron Man4x4 purchases; pet lounger, water tank, foam cell suspension. I placed two years ago, 270 Delta wing, and the rollout table. All our good quality haven’t got to use the them much since most of this has been placed in October. Just waiting on my rear Raid bumper now. Ironman color scheme goes great with my Metallic Electric Lime Tacoma."

— Tracy C. (5/5)

Solid bumper looks awesome

"Great looking bumper. I’ve gotten a lot of compliments on it. Solid build and easy to install. The brush guard was mine before but I able to put it back after I installed the bumper."

— Josh (5/5)

"Great"

— Mario (5/5)

Love this bumper. This was

"Love this bumper. This was the look I was going for. I couldn’t be happier. Easy to install. I love the fact you can install a winch in it and it doesn’t show. Yes there is a 12000 lbs HF Badlands winch installed in there. I just moved the controls to the engine compartment. I would definitely recommend this to anyone looking for a quality bumper."

— Steve H. (5/5)

"Great product, just wish it came with a template for the cut outs."

— Kylon (4/5)

Excuse the dirty truck; it’s

"Excuse the dirty truck; it’s a work truck. As for the build, it’s easy to assemble. You can fit Diode Dynamics lights with a bit of modification to their brackets. If you’re running 35x12. 50 tires, you might need to trim the lower panel guards. I left mine off for now until I trim them for the tires. When adjusting the bumper forward and backward, watch the light bar bracket—if not adjusted correctly, it will hit the winch tray and prevent the bumper from sliding back properly. The YouTube video is really helpful for the installation process. Now I just need to get the back bumper, unless they decide to sponsor the build for it, considering there are no reviews or other pictures besides theirs, lol."

— Travis Y. (5/5)

Could make installation much easier

"Could make installation much easier if winch cover came in two pieces. . . It would be lighter and provide easier access to cover bolts!"

— BILL K. (4/5)

I really like the bumper.

"I really like the bumper. Especially the low profile with my EVO 10S Warn winch. It was a fairly easy install using the video. I just had a slight problem with one of the bolt holes on the winch plate lining up with the frame hole. I had to enlarge the hole a little bit with a drill. Other than that it was a straight forward install. I really like the look of the bumper and the 40 watt flood fog lights are very bright."

— Todd S. (5/5)

Q&A

Does this bumper fit Ram Rebels: Only for the face lifted ram ds!
Does this model come with the winch Displayed in the picture, or is that an additional cost?: The winch is an add on!
